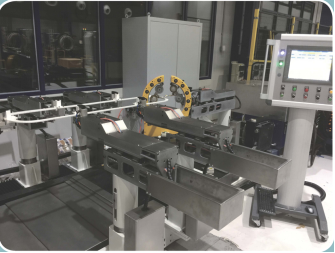

ZCN090B-X (1550、2500) Runway-type Coil CNC Taping Machine (Mechanical Claw Structure)

Technical Specifications:

1、Max. section: 30×60mm, min. section: 7×15mm.

2、Maintain constant tension of 0~6kg during the whole process of taping. Only single side taping work can be carried out.

3、Fusiform length: 800~1500mm (800~2500mm), stepless adjustable.

4、Coil opening: max. 250mm, mechanical constant tension taping head's OD min. 440mm.

5、Tape width 20~25mm, stepless adjustable. mica tape: φ80×φ25mm

6、There are 4 pneumatic mechanical hand clips to grasp the straight part, the end parts have a pair of pneumatic clamps, there's one pneumatic clamp installed on the mechanical taping head to clamp the coil when taping to prevent the coil's big shaking in order to ensure the taping quality. CNC set by touch screen.

7、Overlapping rate: 0~75%, accuracy ±0.05mm , taping pitch can be 1/4~1/2~2/3 stepless adjustable.

8、Taping head speed: 60~250 rpm .

9、This equipment can achieve automatic, manual, left-to-right unidirectional taping, reverse fast return and other taping process requirements.

10、Adopt Japanese Mitsubishi servo motor system, CNC system adopts Taiwan Advantech.
