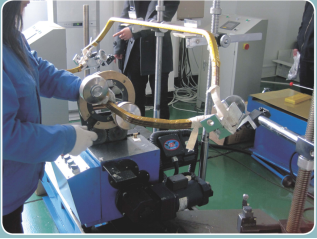

ZCN033A-2200 Dual Conversion CNC Constant Tension Taping Machine

Technical Specification:

1、Section 35×60mm²

2、Line: 400~2200mm, opening: 170~1100mm

3、Double-taping, taping head and walking box each has a variable frequency motor for 15mm, 20mm, 25mm tape. Taping pitch can 1/2 overlap and set 1/4~2/3 overlap freely

4、A pair of general adjustable pressure taping plate, pressure: 1~6kg adjustable. A pair of constant tension taping plate only applicable for few adhesive tape

5、Taping speed: 60~220r/min, few adhesive tape 100~150r/min, taping by single direction, medium &much adhesive tape 150~200r/min, it can tape back and forth, but with bad quality

6、End turning angle is 24˚~55˚, 6 phases adjustable, end can be taped about 1/10~2/3 of 460mm

7、This machine is controlled by PLC, displayed and set on screen
